ERO-TE

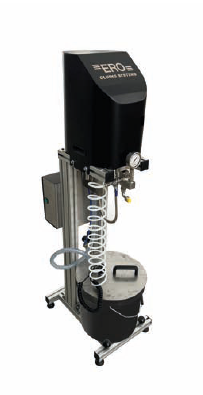

High-Pressure Gluing System

ERO-TE high pressure gluing system has been designed for normal and extremely high-speed folder-gluer machines.

The ERO-TE system includes the following standard features:

Control panel comes standard with 8 channels (16 or more channels available on request) and software
High-pressure double-piston ERO® glue pump
High-pressure ERO® flow regulator
Digital proportional valve and air regulator group
Low level detection system inside the bucket. Includes alarm
Encoder with support and pulley, laser photo-eye, glue filter, glue and air hoses, pump support fitted with sliding device and cover
Electromagnetic glue applicator type GTE-13/S
Glue bucket with 250 micron glue filter
Base plate fitted with wheels available as an option

Extra high-speed production
Low maintenance & easy handling
Maximum reliability at high speeds
Dot application for glue savings
Wide range of options available
Leading technology at a competitive price

Maximum speed of production:	Over 600 m/min.
Maximum error over 500 m/min:	+/- 1 mm
Dimension:	L = 400 mm, H = 1510 mm, W = 660 mm
Weight:	60 Kg without glue

High Pressure Glue Pump

ERO-TE high-pressure gluing systems is provided with a double-piston ERO® glue pump. This pump has been specifically designed
by ERO® for the cardboard sector and on the market there aren’t any similar pumps. It was developed to tackle the problems often inherent in
other pumps. While most piston pumps on the market have a single
piston, the ERO® pump has two. The second piston begins its stroke before the first piston has finished, thus avoiding any loss of pressure.

Double-piston ERO® glue pump
No pressure loss allowed
Leading technology at a reasonable price
Low maintenance & extra-high reliability
Driven by an electrical board
Easy seals replacement

We saved lots of time and money because ERO® gluing systems doesn’t require any daily washing process
