ERO-TEBS

Low-Pressure Gluing System

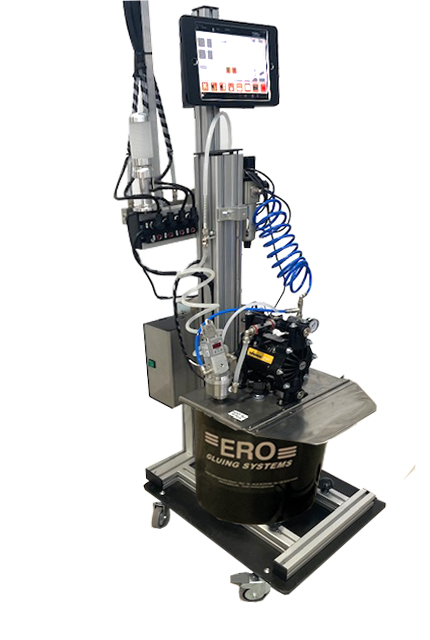

ERO-TEBS low-pressure gluing system is equipped with a structure and a sliding device on the pump to guarantee an easy glue refill of the bucket.

The ERO-TEBS system includes the following standard features:

2/4/8 or 16 channel control panel
Low-pressure glue pump
Low-pressure flow regulator
Digital proportional valve
Encoder with support and pulley, laser photo-eye, glue filter, glue air hoses and pump support
Electromagnetic glue applicator type GTE-13/S
Low glue level as standard
Complete structure and sliding device

ERO control devices can be installed directly onto te folder-gluer machine. With ERO TEBS, the control device can be positioned directly on the structure of the system.

High-speed production
Low maintenance & easy handling
Dot distribution mode for glue savings
Advanced technology at a reasonable price

Maximum speed of production:	Over 500 m/min.
Maximum error over 250 m/min:	+/- 1 mm
Dimension:	L = 400 mm, H = 1510 mm, W = 660 mm
Weight:	60 Kg without glue

WE SAVED LOTS OF TIME AND MONEY BECAUSE ERO® GLUING SYSTEMS DON’T REQUIRE ANY DAILY WASHING PROCESS
