ERO-OS

Simplified Low-Pressure Gluing System

ERO-OS simplified, low-pressure gluing system has been developed to work on high-speed casemaker/flexo-folder-gluer machines.

THE ERO-OS SYSTEM INCLUDES THE FOLLOWING STANDARD FEATURES:

2 or 4-channel control panel with automatic function
Low-pressure, double-diaphragm glue pump, directly installed on the glue bucket
Low-pressure flow regulator and complete air treatment group
Electronic digital proportional valve
Complete encoder with support and pulley, 1 photo-eye, glue filter, glue air hoses, pump support and cover
1 complete GT-09 glue station equipped with flap guides for the carton
Glue bucket with reinforced cover filter and non-return valve

TECHNICAL FEATURES

Precise application with perfect cut-off
Super high-speed production
Low maintenance, high reliability
Dot mode for glue savings
Leading technology at a reasonable price

Maximum speed of production:	Over 210 m/min.
Maximum error over 500 m/min:	+/- 1 mm
Dimension:	L = 400 mm, H = 1200 mm, W = 770 mm
Weight:	25 Kg without glue

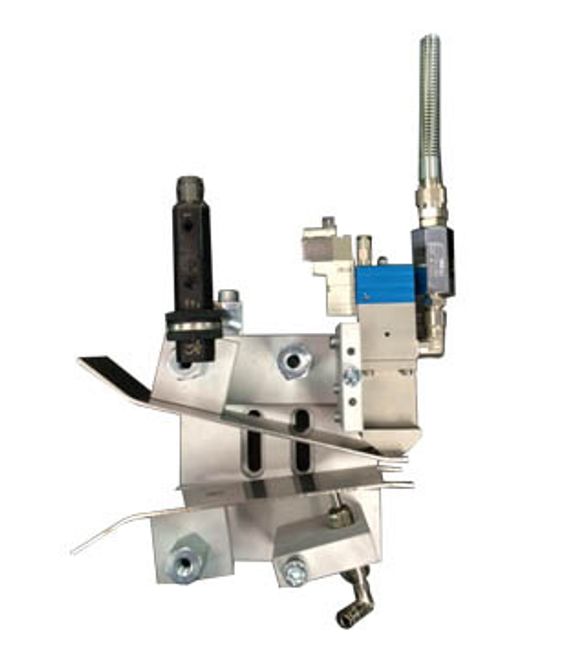

GLUE STATION

The GT-09 glue stations are equipped with either 2/4 exit nozzles or 3 exit nozzles, and can be installed on the right or on the left, to work top-down or bottom-up.

The control panel is usually installed directly onto the casemaker/flexo-folder-gluer machine.
